Precision Crossed Roller Bearings
Review model evidence, dimensions, mounting, load direction, accuracy requirement, drawing or sample photo, application, and quantity before confirming the RFQ path.

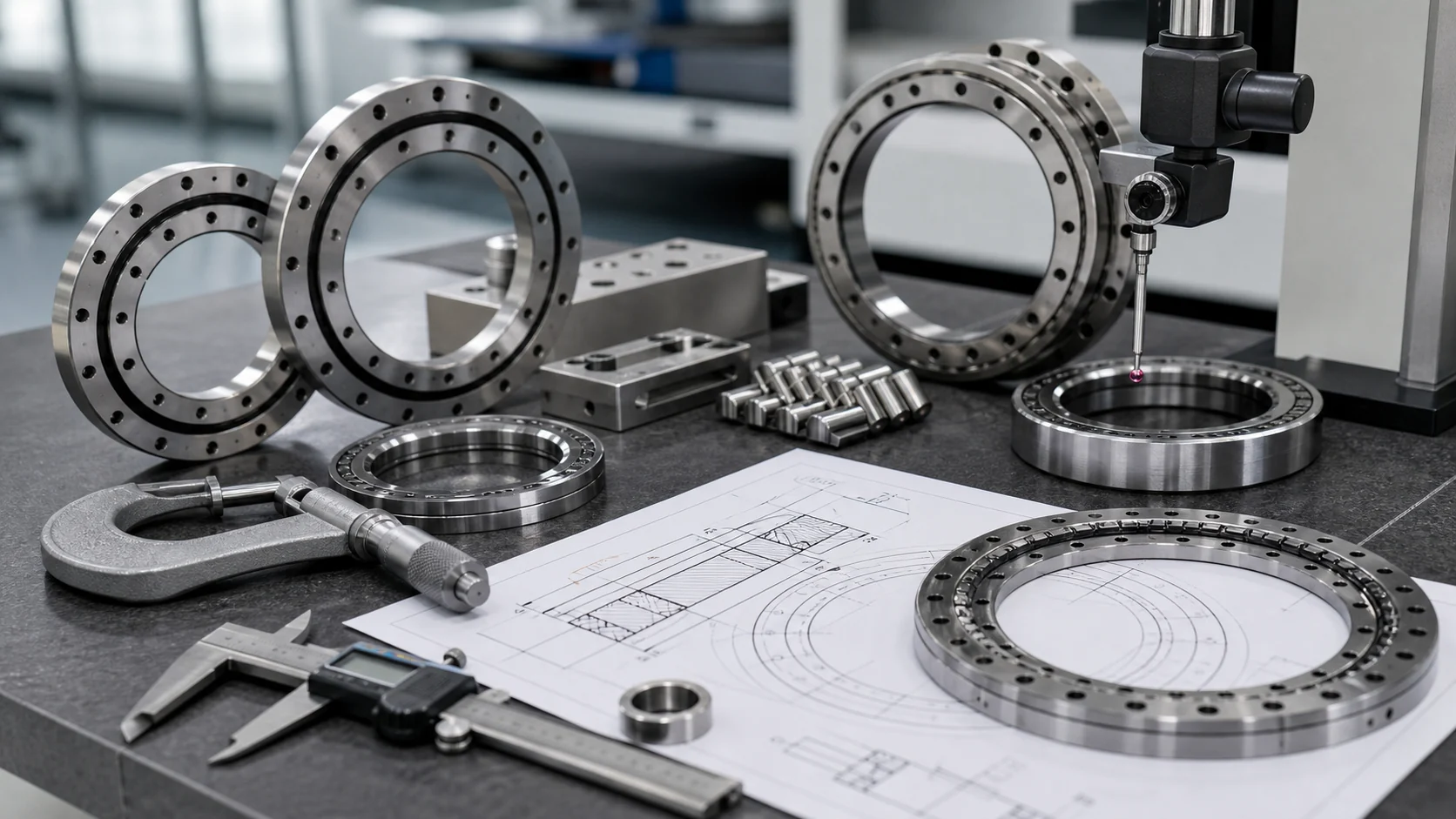

Precision Selection Review
This page routes precision crossed roller bearing requests by model, envelope, ring structure, accuracy need, application, and quantity.
Bore, OD, and width
Do not quote from a phrase alone; confirm the physical envelope or drawing.
Runout and rigidity
Precision requests need rotation accuracy, stiffness, preload, or clearance context.
Ring and hole pattern
Integrated or split ring structure and mounting face can change the review path.
Application fit
Robotics, rotary tables, measuring equipment, and stages may need different evidence.

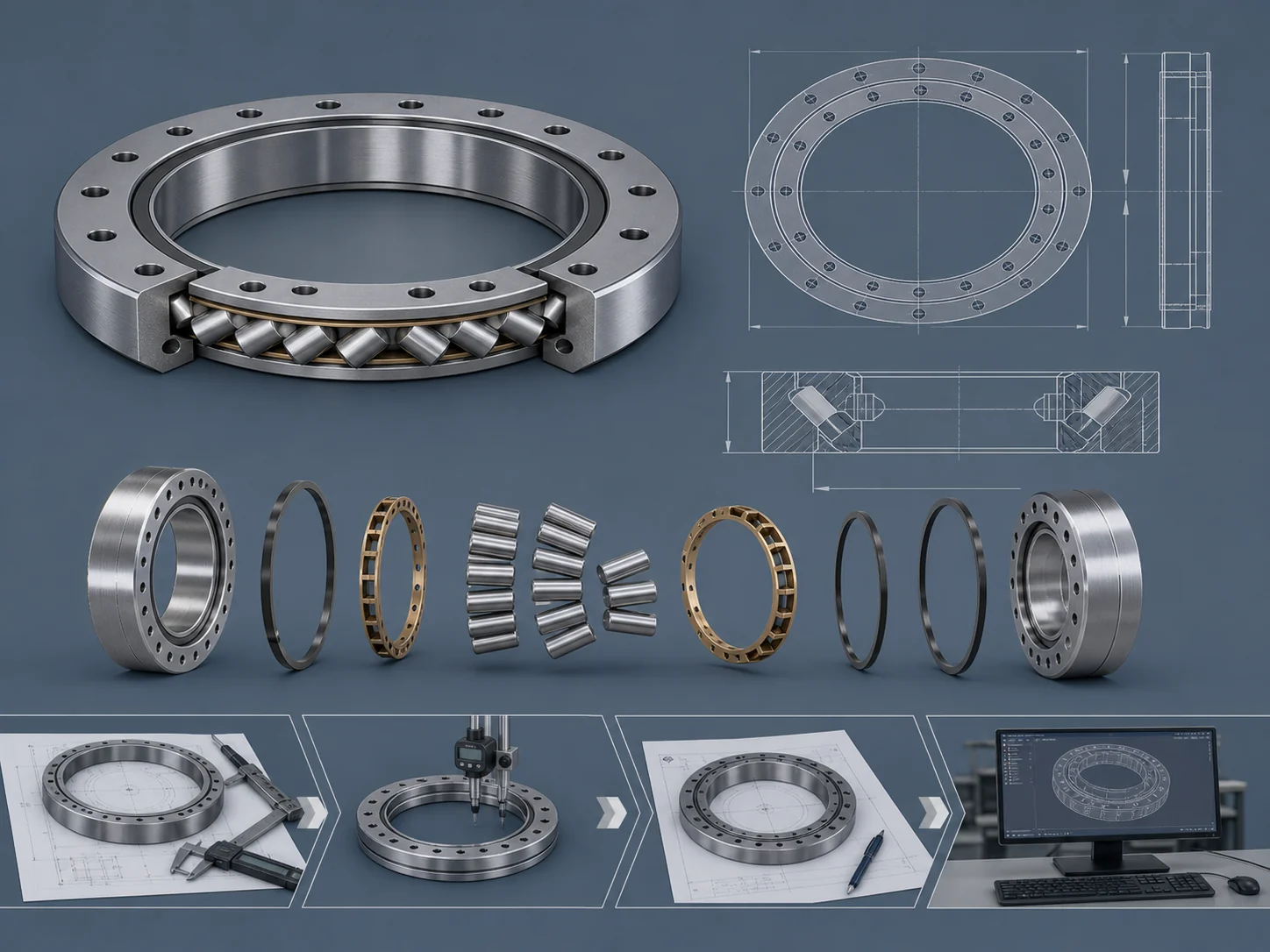

Model or Series Inquiry Parameters
Small engineering details can change the request from a routine quote to a drawing, replacement, or application review.
Known model
Send the complete model, suffix, marking photo, and any old purchase line.
Measured sample
Include bore, outside diameter, width, and photos of both bearing faces.
Accuracy need
State runout, preload, clearance, rigidity, or precision requirement when available.
Mounting context
Show seating face, hole pattern, inner or outer ring mounting, and adjacent parts.
Selection Factors Before Quote
The page guides review, but final fit remains tied to submitted evidence and application conditions.
What to Send TFL
The RFQ path is stronger when model evidence arrives with dimensions, drawing context, application, and quantity.
Precision Selection Requirements for RFQ
Precision crossed roller bearing review depends on preload, runout, rigidity, mounting structure, speed, heat, and lubrication. TFL Bearings needs these details before a quotation decision.
Clearance, light preload, or defined preload condition
Changes stiffness, starting torque, heat, and service life before quotation.
Moment load, radial / axial support, and deflection limit
May change series choice, precision level, replacement path, or custom route.
Shaft fit, housing support, bolt pattern, and seating face
Mounting distortion can change runout and rotation or linear accuracy.
RPM, duty cycle, lubricant, heat condition, and environment
Can change feasibility before RFQ and should be validated with application context.
Runout, repeatability, indexing accuracy, and inspection demand
Changes tolerance class, inspection route, and whether a precision or standard route is suitable.

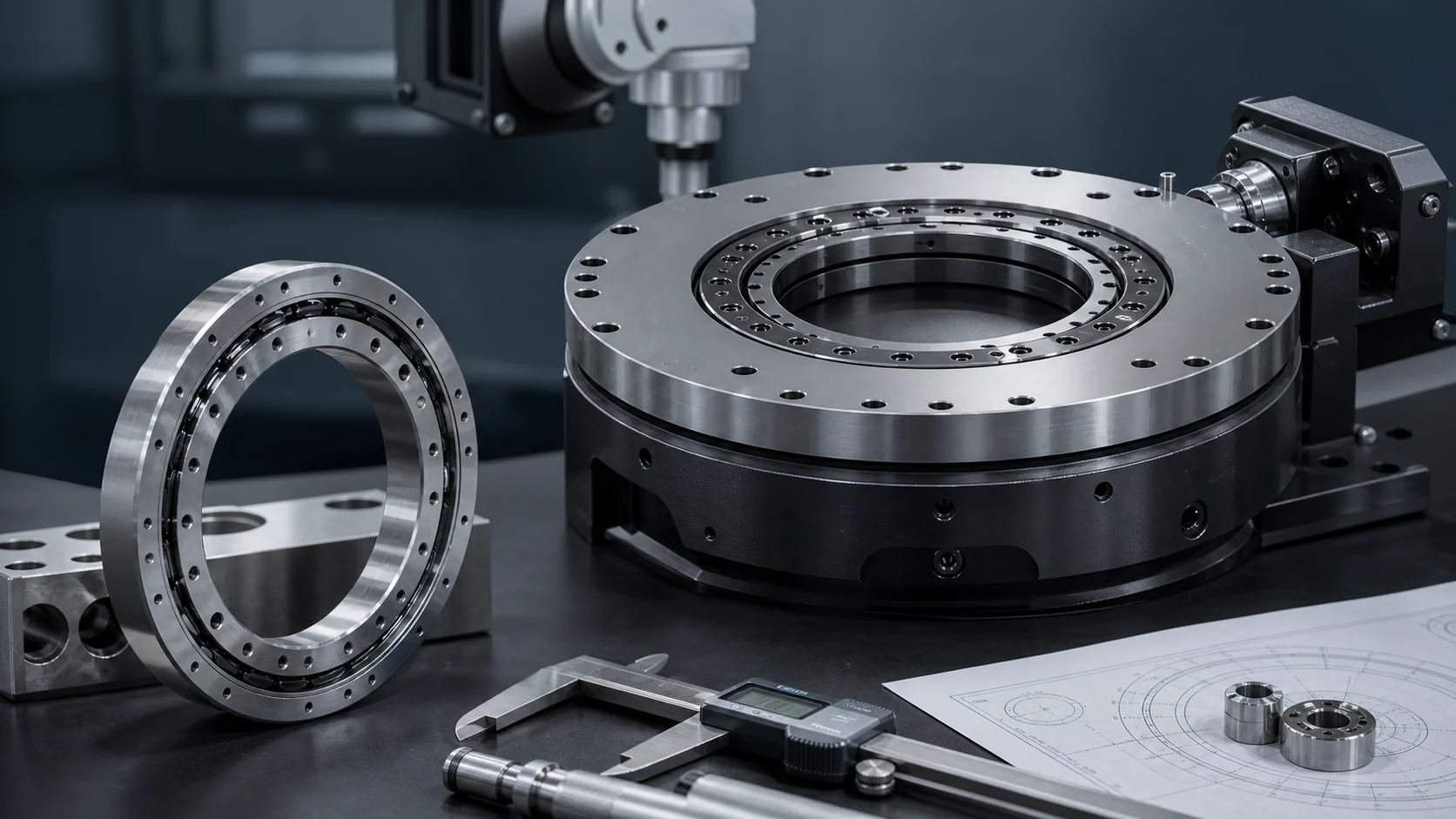

Precision Application Fit and Operating Limits
Different machines use precision crossed roller bearings for different reasons. The RFQ should state which performance limit is driving the request.
Precision RFQ Review Workflow
TFL Bearings separates model evidence from precision validation before preparing quotation details.
Evidence intake
TFL Bearings checks model evidence, drawing, dimensions, photo, application, and quantity before selecting the review route.
Engineering validation
Load direction, preload, rigidity, mounting, accuracy, speed, heat, and environment are reviewed before quote preparation.
Quotation decision
Price, lead time, and confirmation notes are prepared only after the candidate route is validated.
Precision Bearing RFQ Evidence Checklist
Send the model, drawing, dimensions, mounting details, accuracy requirement, preload or clearance, application, quantity, and timing together so the review can move beyond a catalog keyword.
Request Engineering Review- Model code, partial code, or bearing marking photo.
- Bore, OD, width, mounting holes, flange, ring structure, rail length, or stroke as applicable.
- Drawing, installation photo, CAD reference, sample photo, or measured sketch.
- Application, load direction, speed, duty cycle, and environment.
- Preload, torque behavior, rigidity, repeatability, or accuracy requirement.
- Quantity, timing, destination, inspection need, and contact details.
Related Product, Supplier, Application, and RFQ Links
Use these review paths to connect provided evidence with the next sourcing, application, replacement, or RFQ action.
TFL cross roller bearing range
Return to the parent product hub.
Review optionPrecision crossed roller bearing supplier options
Route supplier intent to the dedicated supplier page.
Review optionQuality inspection process
Support precision quality concerns.
Review optionAsk TFL to confirm the bearing model
Send details for quote review.
Review optionFAQ
TFL reviews model evidence, dimensions, mounting, load direction, application conditions, and RFQ scope before quotation follow-up.
Include measured dimensions, drawing or photo, application conditions, quantity, target timing, and any accuracy, preload, clearance, or rigidity requirement.
Yes. A drawing, sample photo, or measured bearing can support review when it shows mounting interface, ring structure, dimensions, application, and quantity.
No. Availability and quotation timing are reviewed only after model, dimensions, drawing or photo, application, quantity, and delivery context are clear.
