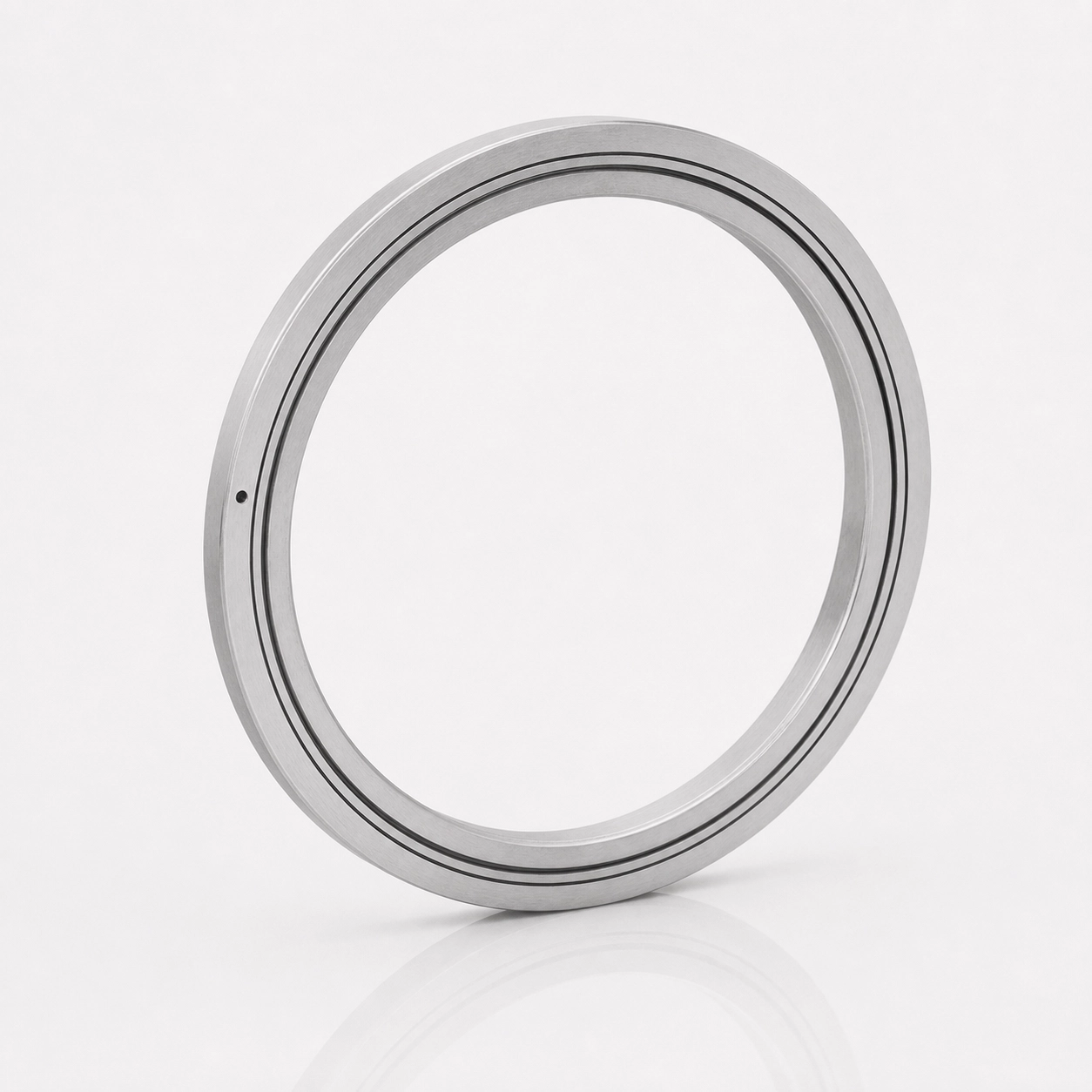

CRBH3010A Crossed Roller Bearing
Use the documented base-model evidence below to prepare a CRBH3010A request. Send the full suffix, drawing, mounting and application conditions so TFL Bearings can review the requested configuration before quotation.
CRBH3010A Model Evidence
IKO CRBH-series catalogue data establishes a base-model evidence boundary. Suffix-controlled details remain RFQ confirmation items.
Catalogue identity
The IKO catalogue distinguishes CRBH 3010 A open and CRBH 3010 A UU sealed designations.
Basic envelope
30 mm bore × 55 mm outside diameter × 10 mm width; approximately 0.12 kg
Ring and mounting review
one-piece inner and outer rings with mounting holes in the CRBH-series design
Published evidence boundary
catalogue basic dynamic load rating 7.60 kN and basic static load rating 8.37 kN

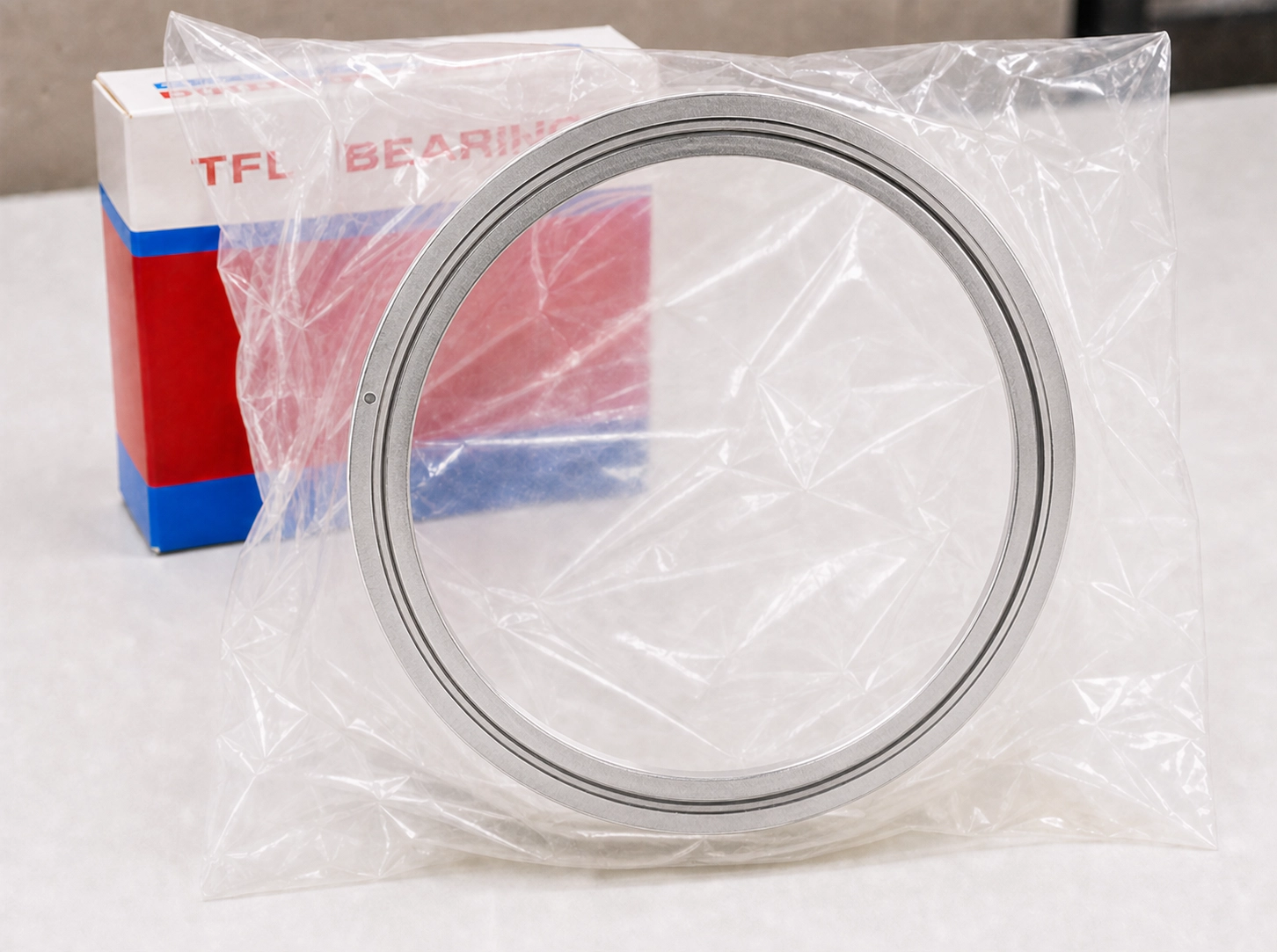

Configuration and Application Checklist
A base model does not prove the supplied suffix, seal, precision, clearance, preload, fit, availability, or delivery condition.
Confirm the full designation
Confirm open CRBH 3010 A or sealed CRBH 3010 A UU, plus accuracy, clearance, preload, lubrication, and supplied condition; the base model does not prove a suffix.
Check the mating structure
Confirm shaft, housing, seating faces, clamping sequence, mounting distortion limits, and surrounding clearances from the current drawing.
Define operating conditions
State combined loads, moment load, speed or oscillation profile, stiffness and runout targets, mounting-bolt and seating conditions, lubrication, temperature, contamination, and duty cycle.
Prepare the purchasing scope
State quantity, destination, target timing, inspection plan, certificate needs, packaging, and shipment context for RFQ review.
TFL Supply Chain Review Support
TFL Bearings acts as a bearing supply chain integrator, so model review can also cover sourcing route, cost-saving alternatives, inspection, documents, and export coordination after RFQ evidence is validated.
Pre-audited manufacturing resources
TFL Bearings can coordinate cross roller bearing options across reviewed China manufacturing resources when the RFQ includes model, drawing, quantity, and application evidence.
Cost-saving candidate review
For replacement or cross-reference work, TFL Bearings can review dimensional interchangeability, preload, accuracy, rigidity, mounting, and application limits before quotation.
BOM and shipment coordination
Mixed-model requests can be reviewed for one PO, combined shipment, inspection, export packaging, and document support when the order scope is clear.
Evidence and Risk Boundary
The request moves forward only after the catalogue facts and configuration-dependent details are kept separate.
What to Send for CRBH3010A
A complete technical and commercial package reduces follow-up and prevents a base-model assumption from becoming a configuration claim.
CRBH3010A Selection Decision Layer
Review identity, geometry, configuration, application duty, and purchasing scope together before a quotation decision.
Complete base code, suffix, marking, and source drawing
Separates an exact request from a family-level or replacement review.
Envelope, ring structure, seating faces, and mounting interface
Prevents a nominal size match from being treated as confirmed fit.
Loads, speed, motion, stiffness, accuracy, lubrication, and environment
Can change configuration, inspection, and application feasibility.
Quantity, destination, timing, documents, packaging, and inspection
Defines what can be reviewed during quotation follow-up.
Configuration Review Before Quotation
Use the applicable route for an exact code, a partial code, or a drawing-led request.
Model-to-RFQ Review Process
Catalogue evidence is checked first; configuration and commercial statements follow only after the request is complete.
Evidence intake
Check the CRBH3010A code, suffix, source drawing, dimensions, photos, and unresolved assumptions.
Engineering review
Review mounting, loads, speed, accuracy, stiffness, preload or clearance, lubrication, and environment.
Quotation route
Confirm the candidate configuration, quantity, destination, inspection, documents, packaging, price, and timing through RFQ follow-up.
CRBH3010A RFQ Checklist
Send these items together so technical review and quotation scope remain traceable.
Request CRBH3010A Review- Complete CRBH3010A code, suffix, marking photo, drawing reference, or previous purchase line.
- Bore, outside diameter, width, ring structure, mounting interface, and adjacent-part dimensions.
- Drawing, installation photo, measured sketch, or sample photos from both sides.
- Radial, axial, and moment load; speed; duty cycle; rigidity; accuracy; lubrication; and environment.
- Required seal, accuracy, clearance, preload, running torque, and inspection conditions.
- Quantity, destination, target timing, document needs, packaging notes, and unresolved fit questions.
Related Selection and RFQ Paths
Use these review paths to connect provided evidence with the next sourcing, application, replacement, or RFQ action.
CRBH Series
Compare the CRBH-series structure and RFQ path.
Review optionCross roller bearing product center
Compare structure, application, and purchasing routes across the product family.
Review optionCross roller bearing size chart
Use measured dimensions as supporting evidence, not as a stand-alone equivalence decision.
Review optionRequest a quote
Send CRBH3010A evidence, application conditions, quantity, and timing.
Review optionFAQ
30 mm bore × 55 mm outside diameter × 10 mm width; approximately 0.12 kg. These values identify the documented base model; verify the full designation and current drawing before purchasing.
one-piece inner and outer rings with mounting holes in the CRBH-series design. The mounting interface and supplied configuration still require project review.
No. Confirm open CRBH 3010 A or sealed CRBH 3010 A UU, plus accuracy, clearance, preload, lubrication, and supplied condition; the base model does not prove a suffix.
No. Those points are reviewed only after the exact designation, application, quantity, destination, inspection, and document scope are validated.
Send the complete code and suffix, dimensions, drawing or photos, mounting details, loads, speed, accuracy and rigidity needs, lubrication, environment, quantity, destination, and target timing.
